Packaging Guide

This section specifies the guidelines that you must follow to carry out to sufficiently package your item and shipment. Remember that you need to follow this Packaging Guide.

The preparation of the packaging is essential to provide adequate protection to the item during the transport and distribution process. The packaging must protect the products from shocks, falls and vibrations, so it must act as a shock absorber.

These indications can be useful for all types of shipments, but pay attention to the type of item you are sending, as there are some specifications.

Follow these 4 simple guidelines!

  1. Find a sturdy cardboard box that is suitable for stacking during shipping.
  2. It uses shock-absorbing material according to the weight, dimension and type of item.
  3. Wrap the items individually with a shock-absorbing element appropriate to the type of item.
  4. Pay special attention to protecting the corners and sides. Items must be separated from each other (on the sides and corners), with sufficient filler material appropriate for the type of item being shipped.

1. External Packaging

  • Choose a new corrugated cardboard box. Make sure the cardboard is robust and durable. Cardboard, paper, plastic and padded envelopes do not have shock-absorbing properties.
  • Select the size of the box based on the size and weight of the item. Always use filler materials for empty spaces to prevent possible damage.
  • Handling instructions (handle with care, this side up, fragile, do not fold/bend, do not stack, etc.). They do not guarantee any special treatment. The item is handled by automatic machines and must withstand a free fall of at least 1.50 m.
  • Pallet. It is to be used only for shipping bulky and/or heavy goods.

Go to the top of the page

2. Internal Packaging

The internal packaging protects the item during the sorting process. Good internal packaging should protect the product from shocks, vibrations and act as a shock absorber. Check the specific protective measures according to the type of item.

The internal protective materials required are divided into 3 main categories: shock absorbers, fillers and separators.



COMPLIANT SHOCK ABSORBER:

  • Moldable foam.
  • Inflatable packaging (Airbags).
  • Expanded polyethylene- corners and profiles (aka EPE foam).

NON-COMPLIANT SHOCK ABSORBER:

  • Corrugated fibreboard (aka cardboard)
  • Newspaper.
  • Clothes, blankets, quilts or similar fabric materials.

FILLER:

  • Polyethylene foam.
  • Moldable foam.
  • Injectable foam.
  • Foam rubber.
  • Inflatable packaging (Airplus cushions).
  • Foam chips or shavings

SEPARATOR:

  • Moldable foam.
  • Injectable foam.
  • Sheets of expanded polyethylene.
  • Bubble wrap.
  • Thermoplastic polystyrene.
  • Modular Packaging / Matryoshka (Russian doll) / Box-in-Box.

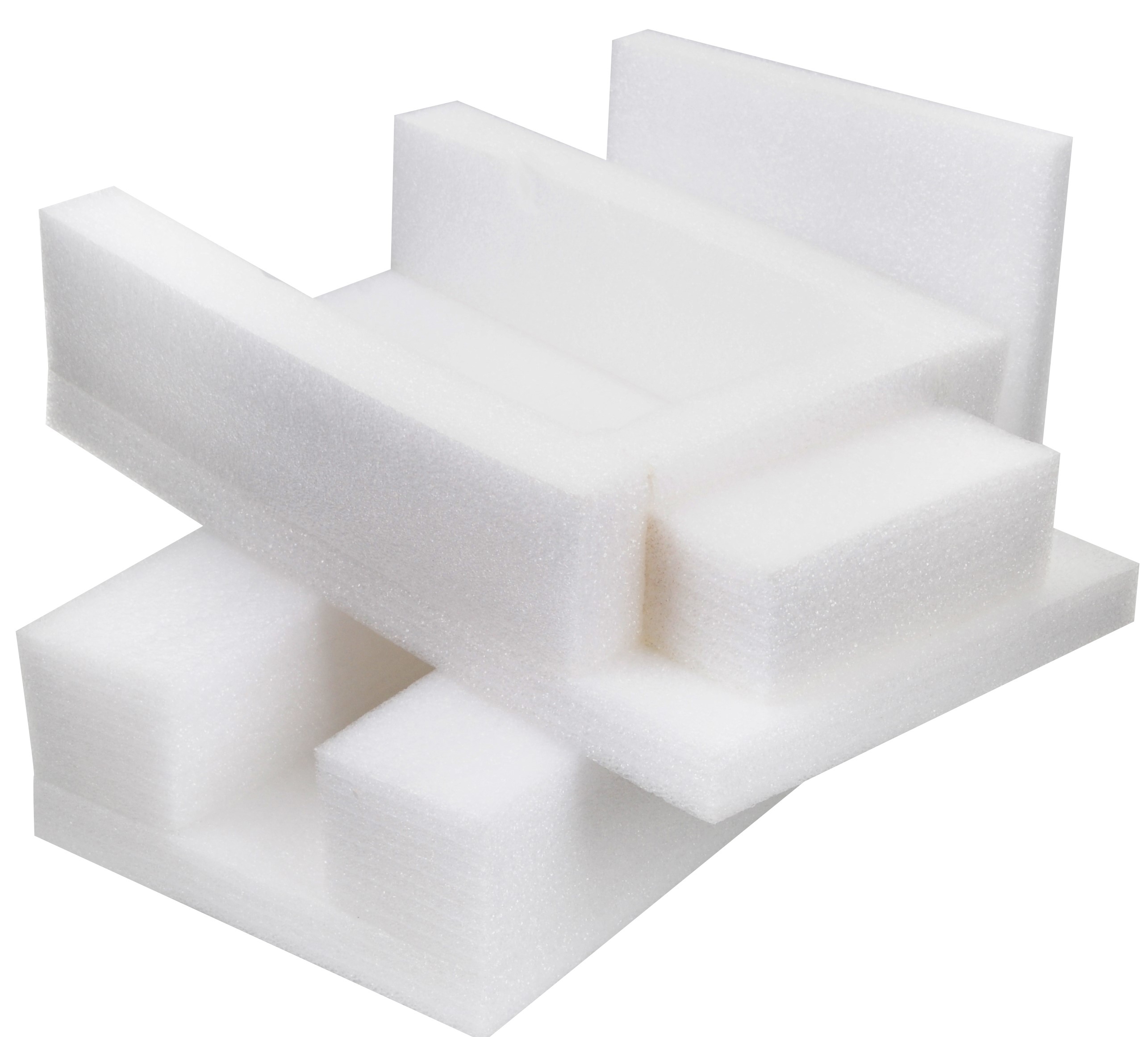

arrow_right (1).png Moldable foam - SHOCK ABSORBER, FILLER & SEPARATOR

Suitable for any kind of product; reinforces corners and protects edges. Highly recommended.

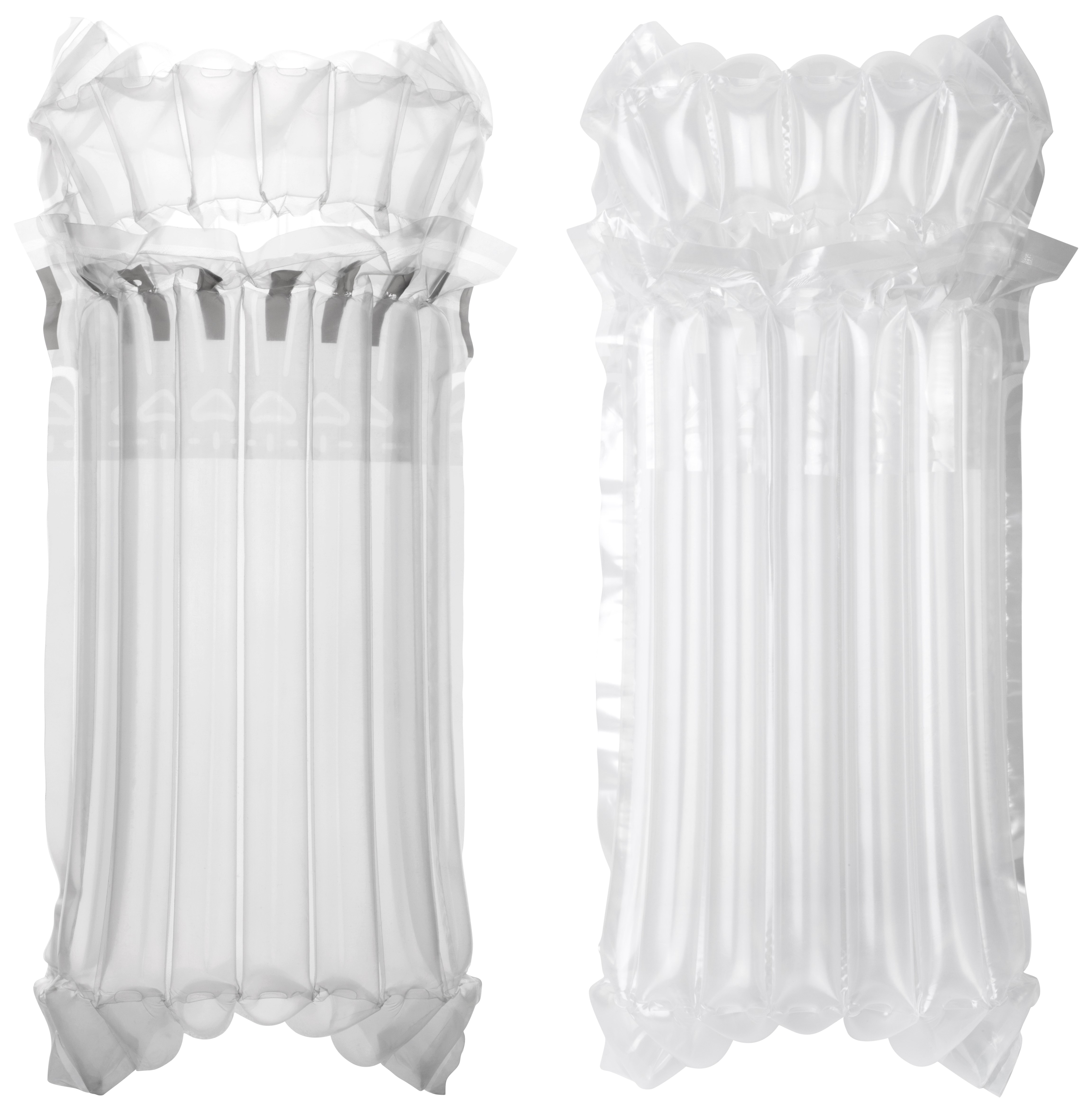

arrow_right (1).png Inflatable packaging (Airbags) - SHOCK ABSORBER

It uses air pressure to protect products from outside temperatures and absorb shocks when transporting fragile goods. Not to be confused with Airplus Cushions.



arrow_right (1).png Expanded polyethylene- corner and profiles - SHOCK ABSORBER

Protects the corners from possible impacts.

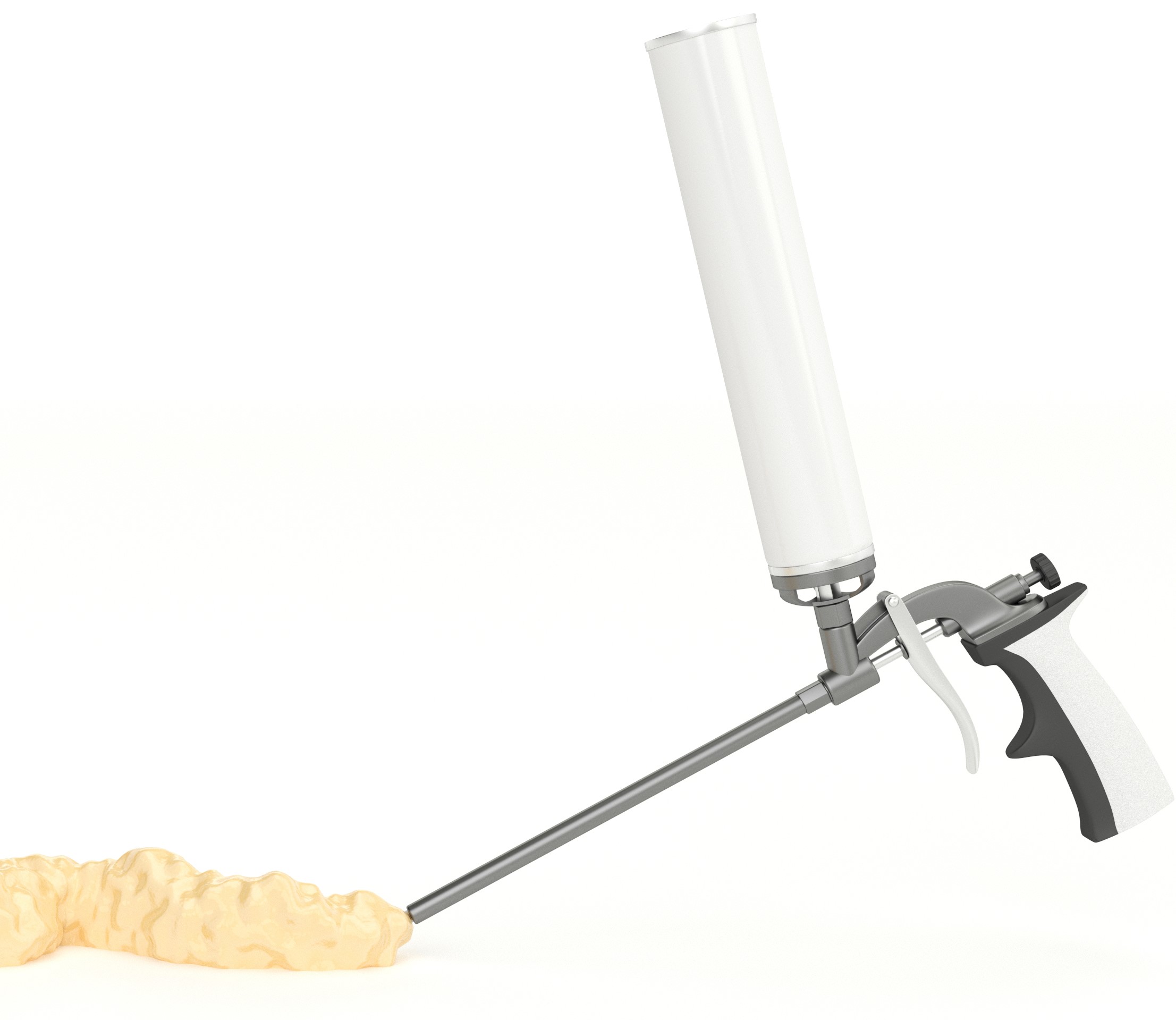

arrow_right (1).png Injectable foam (EPS) - FILLER & SEPARATOR

It adapts to the shape of the item and fills the empty spaces of the box, immobilising the item and protecting it from vibrations. Does not act as shock absorber in the case of a fall.

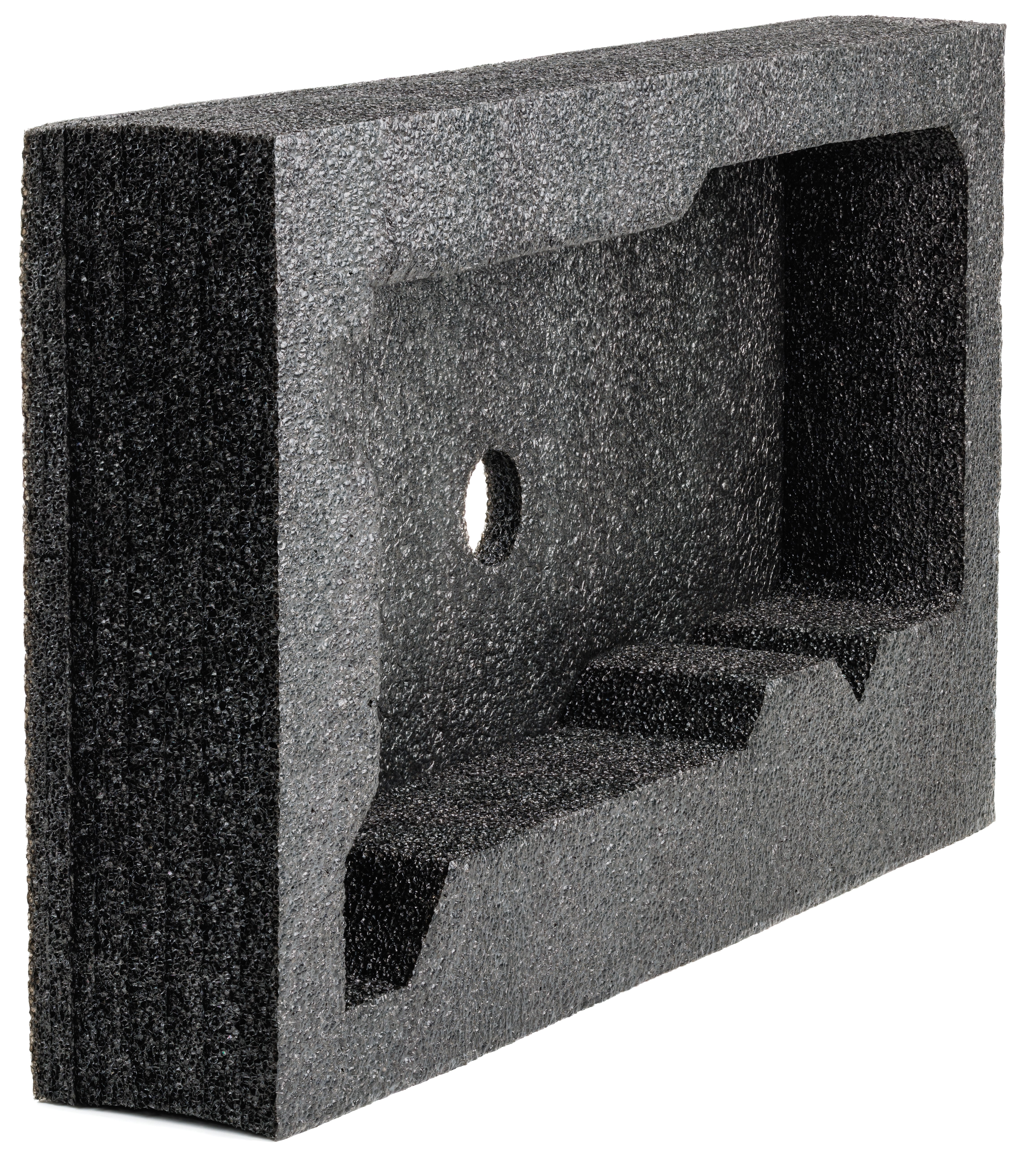

arrow_right (1).png Compression-resistant polyethylene foam (PE) thickness >10 cm - FILLER & SEPARATOR

Lightweight and compression resistant material with shockproof capacity. Does not act as shock absorber in the case of a fall.

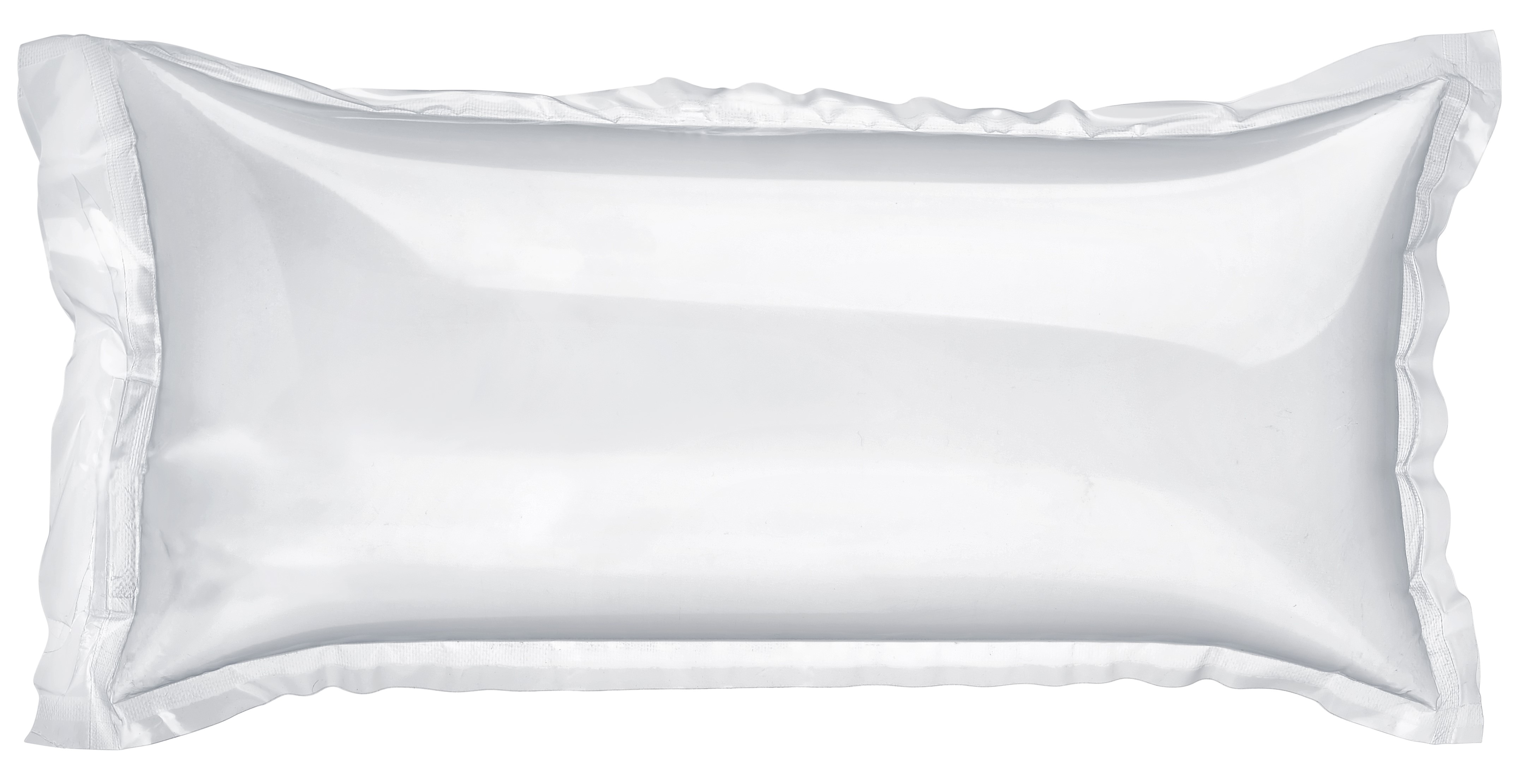

arrow_right (1).png Inflatable packaging (Airplus cushions) - FILLER

To immobilise lightweight objects and fill empty spaces in the box. Does not act as shock absorber in the case of a fall.

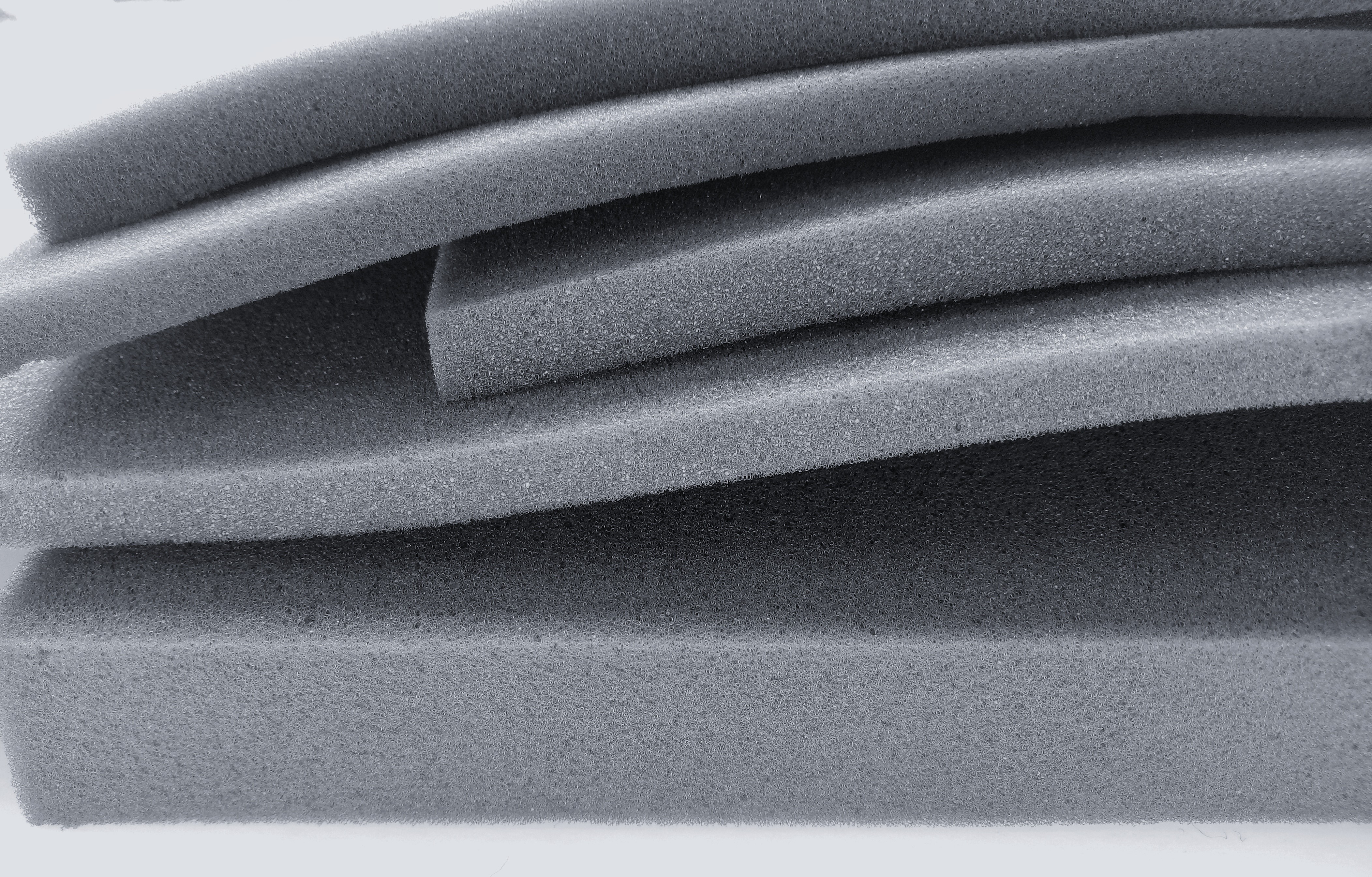

arrow_right (1).png Foam rubber - FILLER

Medium density sponge material with shockproof capacity. Does not act as shock absorber in the case of a fall.

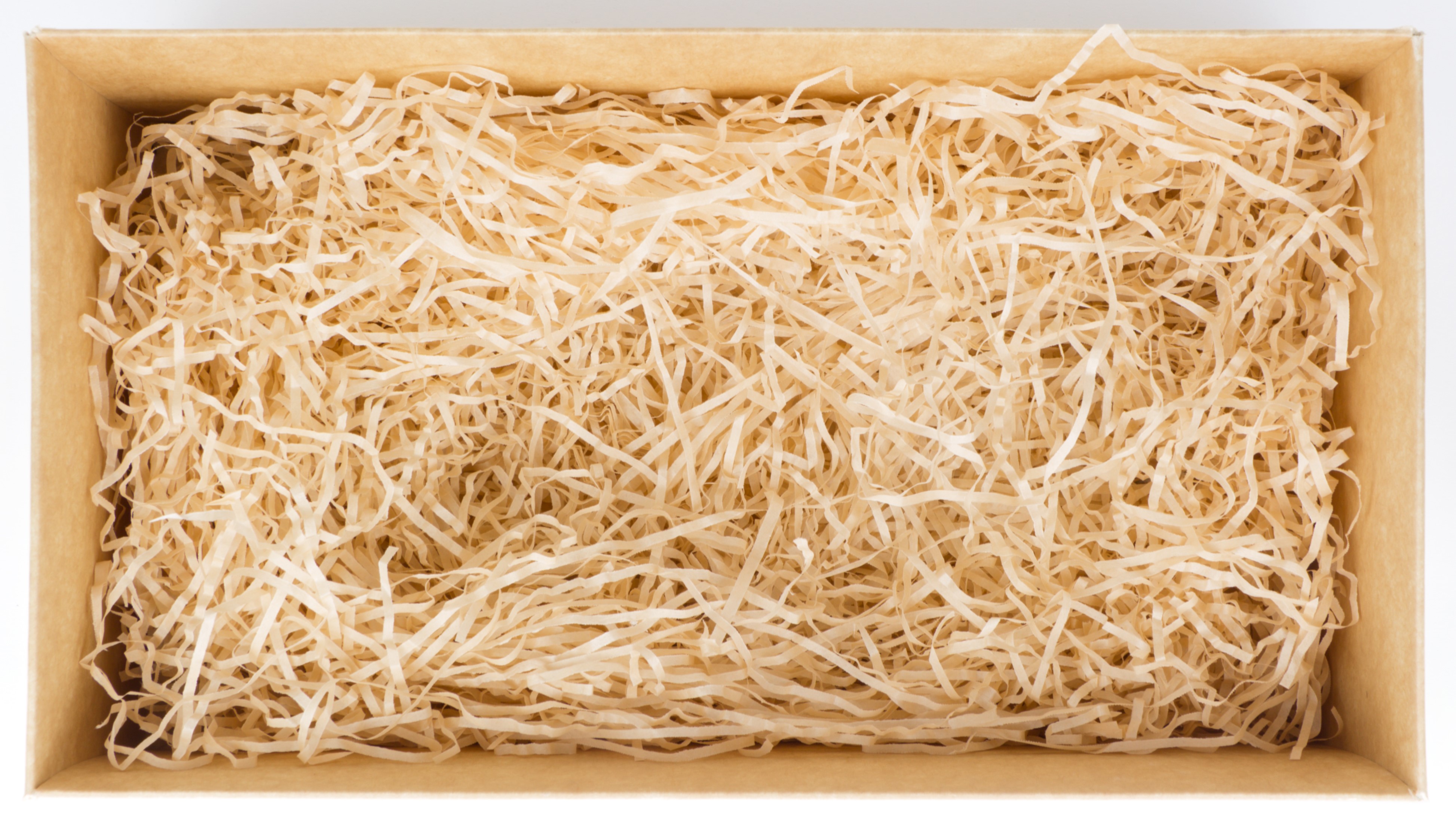

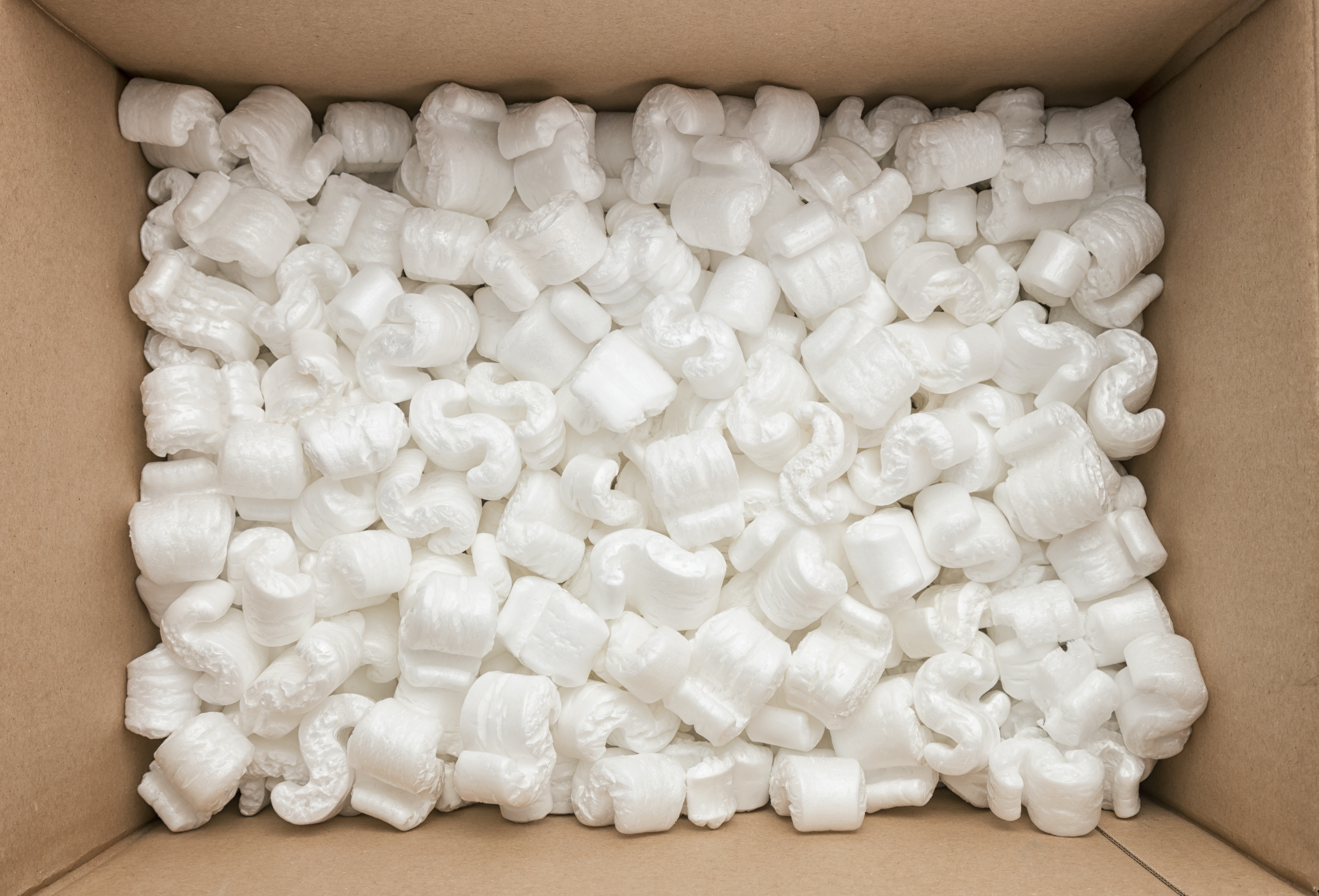

arrow_right (1).png Foam chips or shavings - FILLER

They are filler materials that prevent scratches. They do not have shock-absorbing properties, therefore they do not act as a shock absorber in the case of a fall.

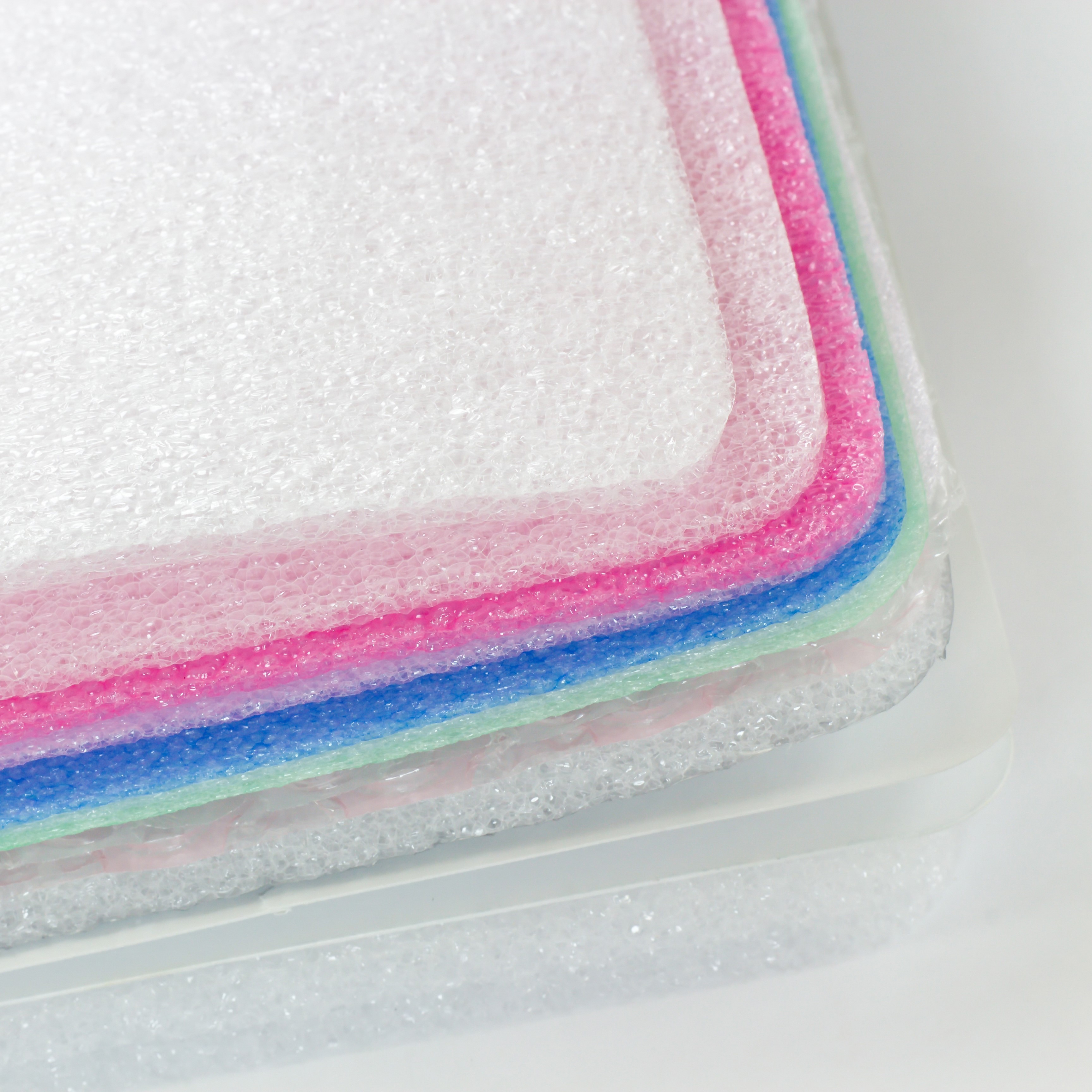

arrow_right (1).png Sheets of expanded polyethylene, thickness <10cm - SEPARATOR

Surface protector that prevents scratches.

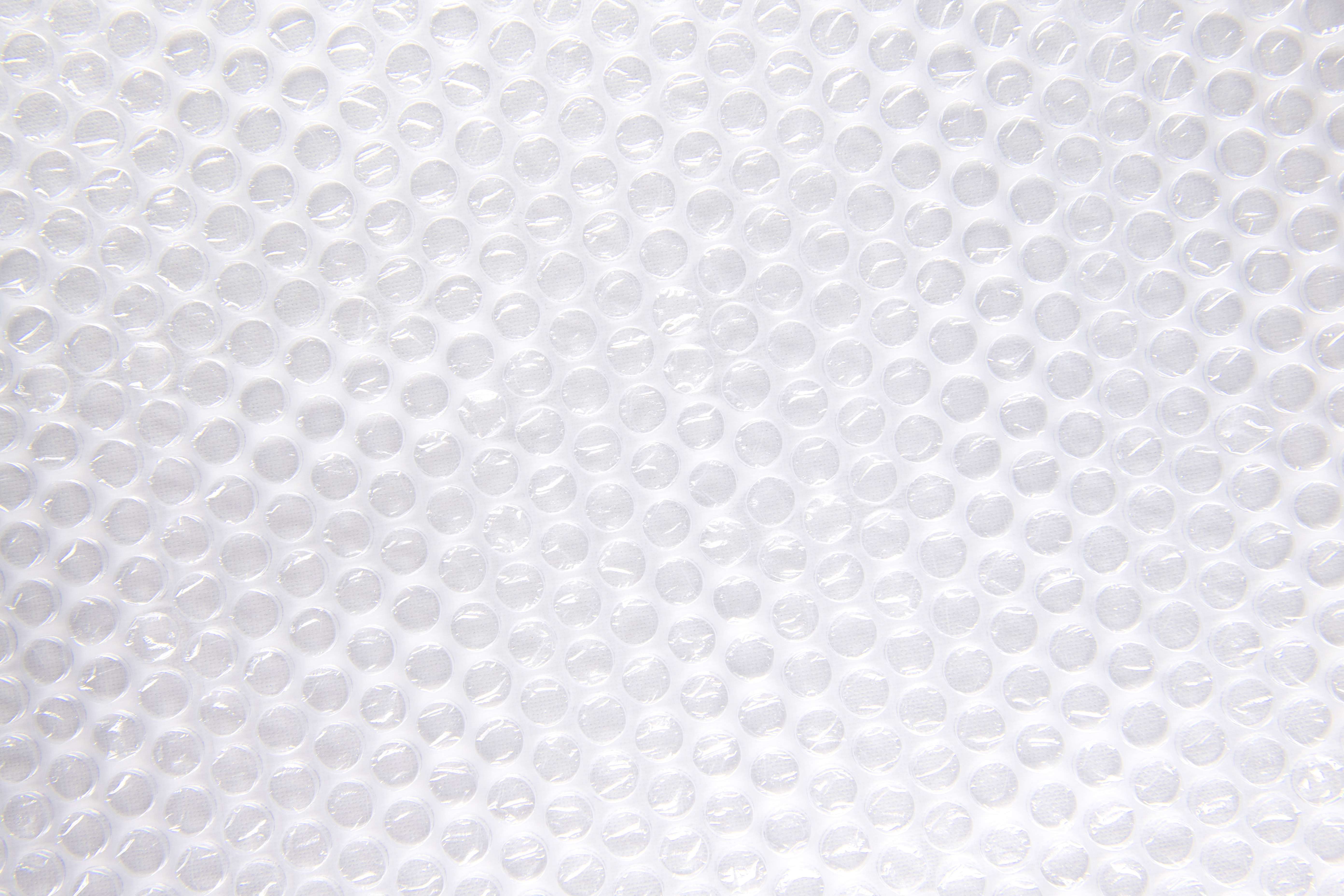

arrow_right (1).png Bubble wrap - SEPARATOR

Encapsulated air provides good protection for lightweight, non-fragile items. This material is flexible and allows you to wrap items of virtually any shape or size. Large encapsulated-air plastic (bubble) sheeting is highly recommended for higher shock absorption performance.

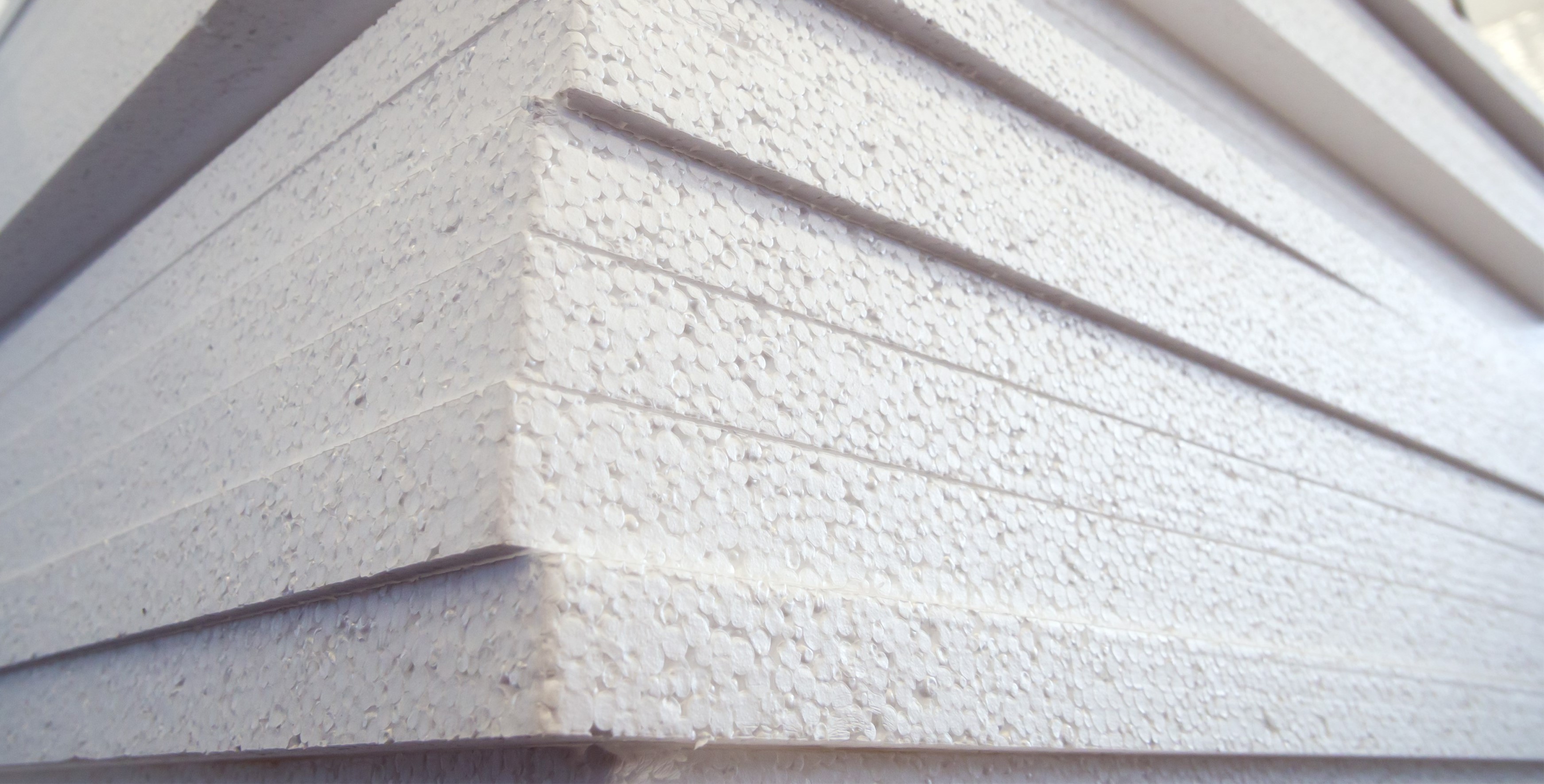

arrow_right (1).png Thermoplastic polystyrene - SEPARATOR

Suitable for separating items from each other and from the edges of the box, preventing contact and possible scratches.

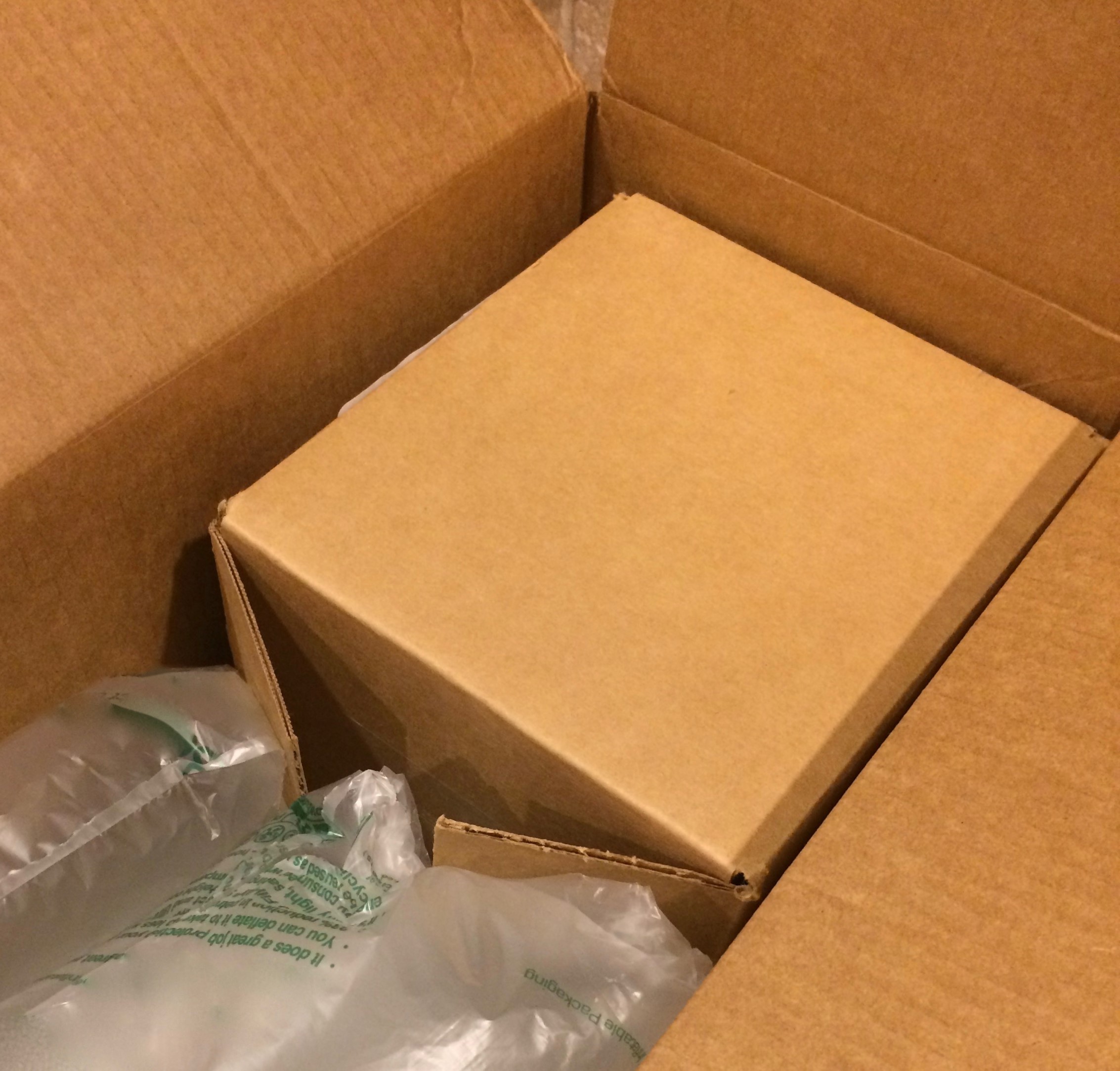

arrow_right (1).png Modular Packaging/Matryoshka (Russian doll)/ Box-in-Box - SEPARATOR

Boxes of different sizes that can be inserted one inside the other to protect from scratches and impact. This type of packaging also enables the item to be immobilised and offers additional protection from vibrations and shocks.

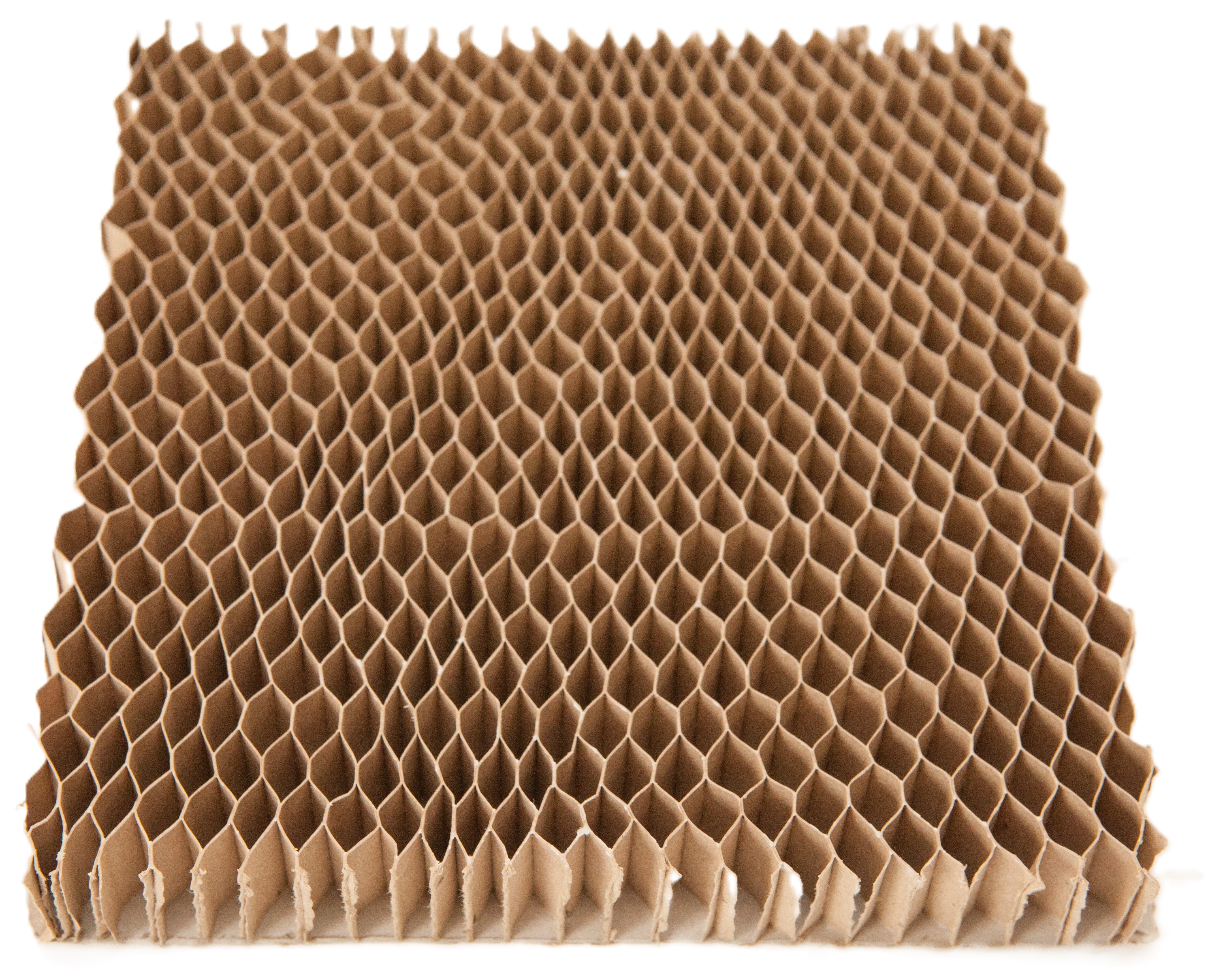

arrow_right (1).png Honeycomb cardboard (Flexi-Hex Sleeves) - SEPARATOR

It is used to separate light and non-fragile objects. This packaging material protects from scratches, but not from impact. It does not have shock-absorbing properties.



arrow_right (1).png Corrugated fibreboard (aka cardboard) - NON-COMPLIANT SEPARATOR

Two or more layers of plain corrugated cardboard used as a separator do not guarantee sufficient protection between the item and the box. This material does NOT comply with our Packaging Guide.



arrow_right (1).png Newspaper, clothes, blankets, quilts or similar fabric materials - NON-COMPLIANT SEPARATOR

These materials are not proper protective packaging. These materials do NOT comply with our Packaging Guide.

Go to the top of the page

3. Closing and sealing

  • Seal your parcel in the shape of a "H": draw the letter "H" with good quality and resilient adhesive tape, closing all the openings of the packaging, both at the bottom and at the top.
  • Use good quality, strong adhesive tape: it should be at least 50mm wide and applied to both the top and bottom of the box.
  • Protect corners: protect your parcel using impact-resistant expanded polyethylene, they distribute pressure evenly, preventing damage to the box.

Go to the top of the page

4. Documentation

  • Transport label: we recommend using adhesive labels. The label must be visibly located on the exterior of the box. It certifies that the postage of the parcel has been paid through eBay Delivery and the recipient will not have to bear the cost of postage.
  • Customs documentation: we recommend using a self-sealing adhesive plastic sleeve where the envelope with the shipping documents is affixed. It must be visibly located on the exterior of the box. For all shipments to or from non-European Union (EU) countries, you need to include customs documentation.

Go to the top of the page

5. Item type

Correct packaging must be accordingly selected depending on the type of item being sent. Please see the list of items below:
